Name: Biostar H510MHP-E DDR4 Motherboard
Brand: Biostar
SKU: H510MHP-E
Price: 9000.00 BDT
Availability: InStock

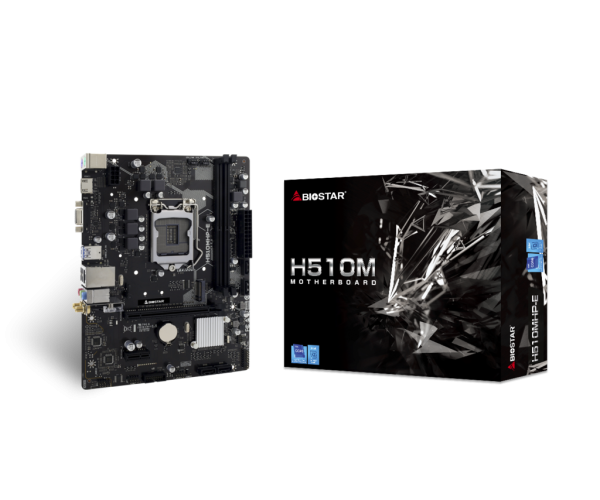

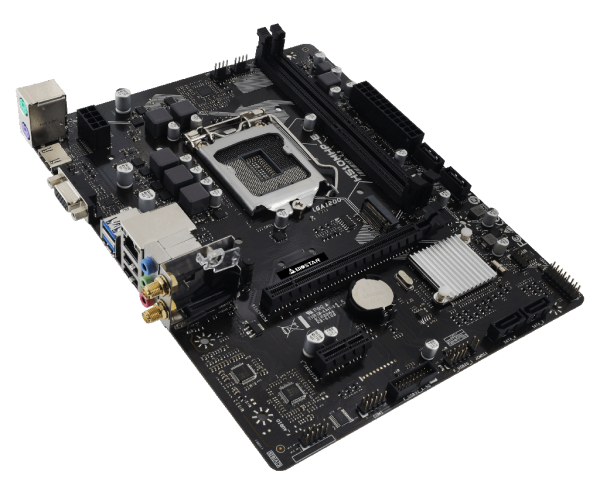

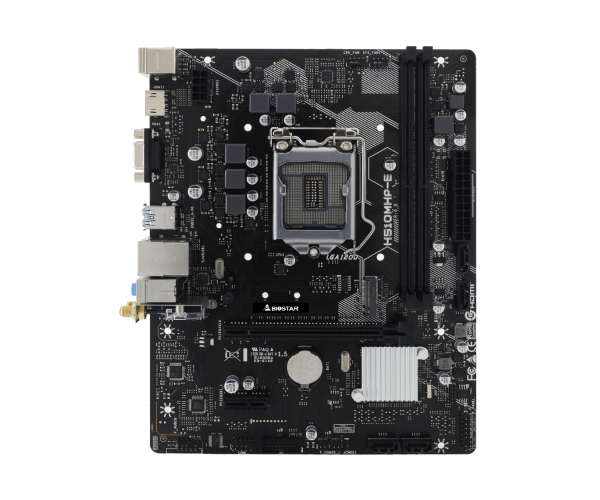

Biostar H510MHP-E DDR4 Motherboard

Based on 0 reviews. - Write a review

9,000৳

Ex Tax: 9,000৳

Stock: In Stock
Brand: Biostar
Model: H510MHP-E
SKU: H510MHP-E

2777 views

Qty

Add to Cart

Buy Now Buy Now

Add to Wish List Compare this Product

It is requested to know about the stock and delivery of the product before ordering

View more info

Brand & Model
Brand	Biostar
Model	H510MHP-E
Details
Chipset	Intel H510
CPU SUPPORT	Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors<br /> * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866<br /> 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory<br /> Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
INTEGRATED VIDEO	By CPU model<br /> Supports DX12<br /> Supports HDCP
STORAGE	4 x SATA III Connector (6Gb/s)<br /> 1 x M.2 (M Key) Socket:<br /> Supports M.2 Type 2242/ 2260/ 2280 SSD module.<br /> Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD<br /> * When using SATA SSD module on M2_PCIEG3_32G_SATA_1 slot, the SATA_1 connector will be disabled.
LAN	Intel I219V<br /> 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio	Realtek ALC897<br /> 7.1 Channels, High Definition Audio
USB	4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)<br /> 4 x USB 2.0 ports (2 on rear I/Os and 2 via internal headers)
EXPANSION SLOT	1 x PCIe 3.0 x1 Slot<br /> 1 x PCle 3.0/4.0x16 Slot<br /> *The PCle 4.0 only depends on Rocket Lake CPUs.

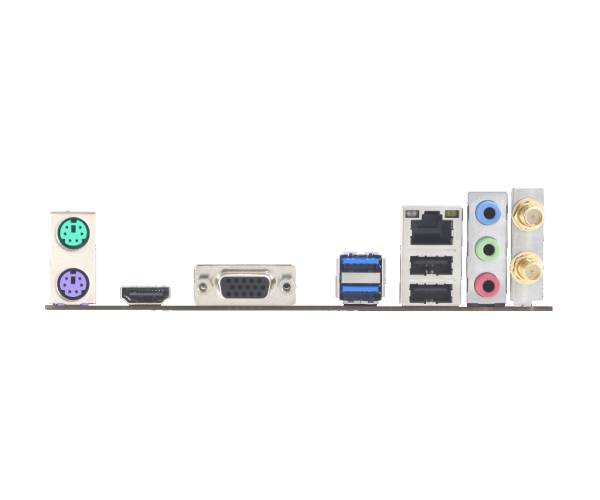

REAR I/O	1 x PS/2 Keyboard<br /> 1 x PS/2 Mouse<br /> 1 x HDMI Port<br /> 1 x VGA Port<br /> 2 x USB 3.2 (Gen1) Ports<br /> 2 x USB 2.0 Ports<br /> 1 x GbE LAN Port<br /> 3 x Audio Jack<br /> 1 x WiFi Antenna Port
INTERNAL I/O	4 x SATA III Connectors (6Gb/s)<br /> 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi<br /> 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)<br /> 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)<br /> 1 x 8-Pin Power Connector<br /> 1 x 24-Pin Power Connector<br /> 1 x CPU Fan Connector<br /> 1 x System Fan Connector<br /> 1 x Front Panel Header<br /> 1 x Front Audio Header<br /> 1 x Clear CMOS Header<br /> 1 x COM Port Header<br /> * M.2 (E key) Wi-Fi card is not provided
DIMENSION	Micro ATX Form Factor Dimension: 18.5cm x 23.5cm ( W x L )
OS SUPPORT	Supports Windows 10 (64bit) / 11(64bit)<br /> ※Biostar reserves the right to add or remove support for any OS with or without notice.
ACCESSORIES	2 x SATA Cable<br /> 1 x I/O Shield<br /> 1 x DVD Driver<br /> 1 x Quick Guide<br /> 1 x WiFi antenna accessories(Option)
Warranty & Others
Bundled Software	BullGuard
Caution	The specification and pictures are subject to change without notice and the package contents may differ by area or your motherboard version!

The Biostar H510MHP-E DDR4 Micro ATX Motherboard is a budget-friendly option tailored for Intel's 10th and 11th generation processors with the LGA 1200 socket. It supports up to 64GB of DDR4 memory across two DIMM slots, with speeds up to 3200 MHz. The motherboard features a PCIe 4.0 x16 slot for graphics cards and two M.2 slots (one supporting PCIe 3.0 x4/SATA and the other supporting PCIe 3.0 x4), alongside four SATA III ports for storage devices. Connectivity options include HDMI and VGA video outputs, two USB 3.2 Gen1 Type-A ports, and four USB 2.0 ports. It also offers Realtek ALC897 7.1-channel HD audio and Realtek RTL8111H Gigabit Ethernet for networking. The motherboard comes in a Micro ATX form factor, making it suitable for compact PC builds. It is compatible with Windows 10 and 11 operating systems.

What is the Biostar H510MHP-E DDR4 Motherboard price in bd 2026?

The latest price of Biostar H510MHP-E DDR4 Motherboard in Bangladesh is 9,000৳. You can buy the Biostar H510MHP-E DDR4 Motherboard at best price from our website or visit any of our showrooms.
