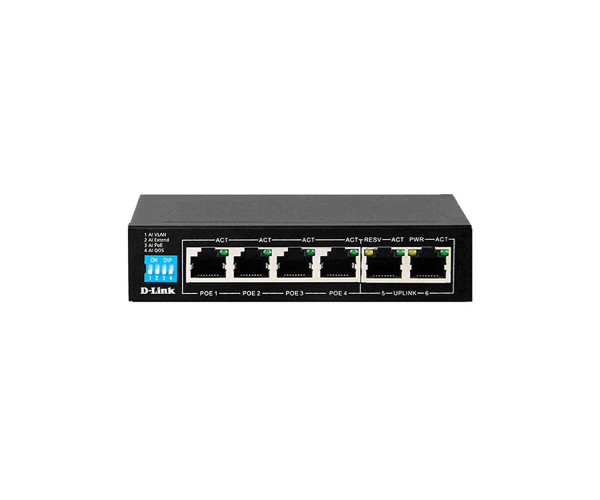

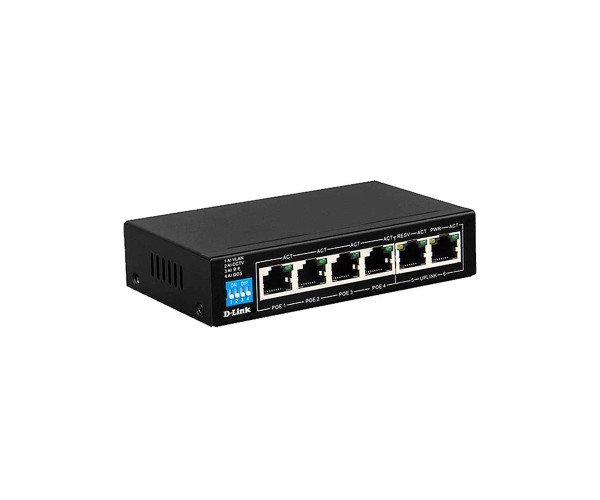

D-Link DES-F1006P-E 6 Port Unmanaged PoE Switch

D-Link DES-F1006P-E 6 Port Unmanaged PoE Switch

The D-Link DES-F1006P-E Fast Ethernet PoE Switch is a compact and efficient 6-port unmanaged network switch designed for small office, home, and surveillance applications. It features 4 × 10/100Mbps PoE RJ45 ports (Port 1–4) and 2 × 10/100Mbps uplink RJ45 ports (Port 5–6), providing both data connectivity and power delivery over Ethernet.

The switch supports IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x flow control, and IEEE 802.3af/at PoE standards. It delivers data transfer rates of 10/100 Mbps with a switching capacity of 1.2 Gbps and forwarding rates of 14,800pps (10M) and 148,800pps (100M). Each port supports MDI/MDIX auto-flip and auto-negotiation for easy plug-and-play installation.

With a total PoE budget of 60W, the device can power multiple PoE-enabled devices such as IP cameras, wireless access points, and IP phones without requiring additional power adapters. It also supports extended transmission distances of up to 250 meters, making it suitable for flexible deployment in surveillance and networking setups.

The switch features a fanless design for silent operation and includes LED indicators for Power, Link/Activity, and PoE status. It is built with 6KV lightning protection for enhanced durability. The device comes in a black desktop form factor, measuring 125 × 75 × 27 mm and weighing 0.75 kg.

Power is supplied through an external adapter (100–240V, 50/60Hz, 52V, 1.15A). The package includes 1 × switch unit and 1 × user manual. Designed to be eco-friendly and energy-efficient, it offers reliable performance while reducing power consumption and operating costs. The product comes with a 1-year warranty (without adapter).
