The DeepCool CG530U 4F Panoramic ATX Case is a dual-chamber, curved-glass ATX mid-tower that ships with four ARGB fans, so a mainstream gaming or creator build looks showroom-clean and runs cool without extra fan purchases.
As the top IT products distributor in Bangladesh, CSI stocks the CG530U 4F for builders who want a glass-first showpiece without giving up airflow. In this review-style guide we cover who it suits, how it behaves during a build, what it supports, and where it makes compromises, so you can decide before you buy.
What Makes the CG530U 4F Different
Its defining feature is a seamless curved tempered-glass wrap that turns the front corner and side into one continuous viewing window.
- Panoramic curved glass: there is no corner pillar cutting across the view, so GPU, RAM and cooler lighting read as one clean display.
- Dual-chamber layout: the PSU and storage drives sit in a separate compartment, which keeps the main chamber tidy and reduces heat stacking around the graphics card.

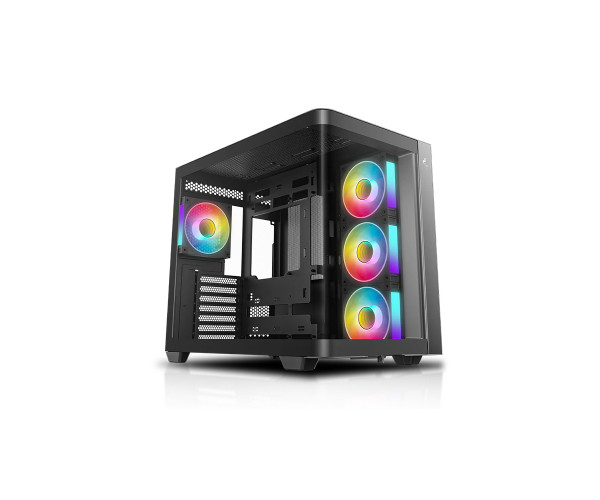

- Four pre-installed ARGB fans: three reverse-blade 120 mm fans on the side and one 120 mm fan at the rear, ready to use out of the box.
- Rear-connector motherboard support: compatible with back-connector boards, so cables can be hidden for a cleaner look.
How the Airflow Works in Real Use

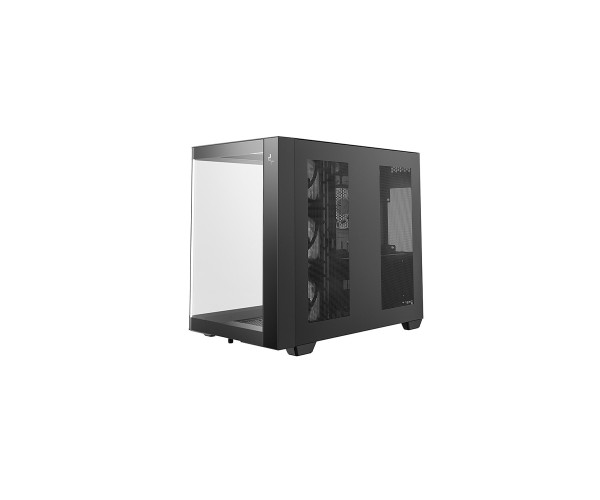

Cool air enters through the side mesh via the reverse-blade fans, crosses the motherboard horizontally, and exits through the rear fan.
Because the front is glass, this case relies on side intake rather than a traditional mesh front. In practice, the CPU cooler and GPU receive a direct stream of fresh air, while the isolated PSU chamber keeps its own heat away from the main compartment. The top and bottom dust filters help keep the interior cleaner during long, dusty Dhaka summers. Hot-running parts such as high-TDP CPUs and mid-to-high-end GPUs benefit most from this straight-line path.
Building Inside It: What a PC Builder Will Notice
The CG530U 4F gives enough room behind the tray and around the GPU to make a first or fifth build stress-free.
- About 45 mm of space behind the motherboard tray makes routing and tying cables easier.
- Seven expansion slots and room for long graphics cards up to 410 mm.
- Space for CPU air coolers up to 160 mm tall and power supplies up to 210 mm long.
- Flexible storage: two 3.5-inch bays plus 2.5-inch mounts for SSDs and legacy HDDs.
- Front I/O with two USB 3.0 ports, one USB Type-C (Gen 2) port, and audio, covering headsets, drives and fast phone transfers.
Cooling Headroom for Liquid and Air Setups
The case supports AIO radiators up to 360 mm at the top and bottom, and up to 280 mm at the side.
That means you can start with the included fans and air cooling, then move to a 240 mm or 360 mm AIO later without changing the case. Check the radiator thickness and your RAM clearance before choosing a top-mounted unit. For paired components, browse the DeepCool products at CSI, including coolers, fans and power supplies.
Who Should Buy It, and Who Should Skip It
A strong fit if you are:
- Building a showcase gaming PC where the glass and lighting are part of the appeal.
- Planning a full-size ATX board with a large GPU and room for upgrades.
- A creator or editor who wants a quiet-looking, cool-running workstation on a desk.
Think twice if you:
- Use a very tall air cooler over 160 mm, which will not clear the glass panel.
- Want a mesh-front case for maximum front intake and minimal glass.
- Need a compact build for a small desk, where a smaller chassis is the better choice.
Honest Trade-Offs Before You Order
- Glass panels look premium but show fingerprints and need careful handling during assembly and transport.
- The power supply is not included, so budget for a quality unit up to 210 mm long.
- With a glass front, airflow depends on side intake, so keep the side mesh clear of walls or desk clutter.
CG530U 4F vs a Compact Airflow Alternative
Choose the CG530U 4F for full ATX builds and a panoramic look; choose a smaller mATX case if desk space and a compact footprint matter more.
If you are building a smaller system, compare it with the DeepCool CH360 Digital White mATX Airflow Case, which suits compact setups. Explore more options in CSI's PC casing collection and the full DeepCool computer case range.
Why Buy from CSI
CSI supplies genuine DeepCool hardware with after-sales support, so your case, fans and glass arrive as the manufacturer intended.
- Authentic, sealed products from a trusted IT distributor in Bangladesh.
- Warranty and service support through CSI for covered manufacturing defects.
- Careful packing and secure delivery for fragile glass products.
- Guidance from a team that understands PC builds, not just box sales.
Frequently Asked Questions
Is the DeepCool CG530U 4F Panoramic ATX Case good for gaming PCs?
Yes. It combines a dual-chamber layout, side-intake airflow and room for GPUs up to 410 mm, which suits high-performance gaming builds.
Does the CG530U 4F come with fans?
Yes. It includes four pre-installed 120 mm ARGB fans: three reverse-blade fans on the side and one at the rear.
Which motherboards fit the CG530U 4F?
It supports ATX, Micro-ATX and Mini-ITX motherboards, including rear-connector (back-connect) models.
Can I install a 360 mm AIO liquid cooler?
Yes. A 360 mm radiator can be mounted at the top or bottom, and the side supports radiators up to 280 mm.
What is the maximum CPU cooler height?
The maximum CPU air cooler height is 160 mm. Taller coolers will not fit.
How long a graphics card can this case hold?
Graphics cards up to 410 mm long are supported, which covers most modern high-end GPUs.
Does it include a power supply?
No. The power supply is sold separately and must be 210 mm or shorter.
Where can I buy the DeepCool CG530U 4F Panoramic ATX Case in Bangladesh?
You can order it from CSI, a leading IT products distributor in Bangladesh, with genuine product assurance and secure delivery.
Final Word
The DeepCool CG530U 4F Panoramic ATX Case suits builders who want a seamless glass showpiece with practical cooling and upgrade room. Order from CSI for genuine hardware, dependable support and safe delivery to your door.
