DeepCool CH260 WOOD Compact Case: A Living-Room-Friendly mATX Chassis That Still Fits a Full-Size Gaming Build
The DeepCool CH260 WOOD WH is a white Micro-ATX compact case with a wood-grain front I/O accent, full steel mesh panels for high airflow, and room for graphics cards up to 413mm, a 360mm top-mounted AIO and a standard ATX power supply. CSI, the top IT products distributor in Bangladesh, supplies it with official warranty and nationwide delivery.
Most small cases ask you to give something up: a shorter GPU, an SFX power supply, or a cramped cooler. After going through the layout of the DeepCool CH260 WOOD compact case, our view at CSI is simple. This is one of the few mATX chassis that looks like a piece of home décor from the outside while behaving like a mid-tower on the inside. It grew out of DeepCool's popular CH160 ITX design, scaled up for Micro-ATX boards while keeping the same airflow-first idea.
Who Should Buy the CH260 WOOD WH?
Builders who want a clean white-and-wood desk setup without downgrading to small-form-factor parts.
- Living room and bedroom gamers who want a PC that blends in with wooden furniture, shelves or a minimal Scandinavian-style desk.
- First-time builders who prefer standard ATX PSUs and normal-sized parts over hunting for SFX or low-profile components.
- Content creators and students building a compact workstation that needs a strong GPU for editing, rendering or streaming.
- Hidden-cable enthusiasts using back-connector (rear-connector) Micro-ATX motherboards for a wire-free front view.
- White-theme builders pairing white RAM, white coolers and white GPUs for a coordinated look.
What Actually Fits Inside: A Builder's Clearance Checklist
Mini-ITX or Micro-ATX boards, GPUs up to 388mm (413mm without front fans), tower air coolers up to 174mm, and ATX power supplies up to 150mm long.
- Motherboard: Mini-ITX, Micro-ATX, and Micro-ATX rear-connector boards, with 29.6mm of space behind the motherboard tray for back-connector cabling.
- Graphics card: 388mm with front fans installed, extending to 413mm if you leave the front fan slots empty, enough for most current triple-fan flagship cards.
- CPU air cooler: Up to 174mm tall, which covers large single-tower and most dual-tower heatsinks.
- Liquid cooling: Top mount supports 120, 140, 240, 280 or 360mm radiators; the rear takes a 120mm radiator.
- Power supply: Standard ATX (PS2) up to 150mm, on a removable mounting bracket that makes installation and cable routing easier.
- Storage: One 3.5-inch bay and one 2.5-inch bay, plus whatever M.2 slots your motherboard offers.
- Expansion: Four slots, so thick 3-slot graphics cards are not a problem.
Airflow Planning: How to Set Up Cooling the Right Way
The case ships without pre-installed fans, so you choose the layout. Front intake plus top and rear exhaust gives the best balance.

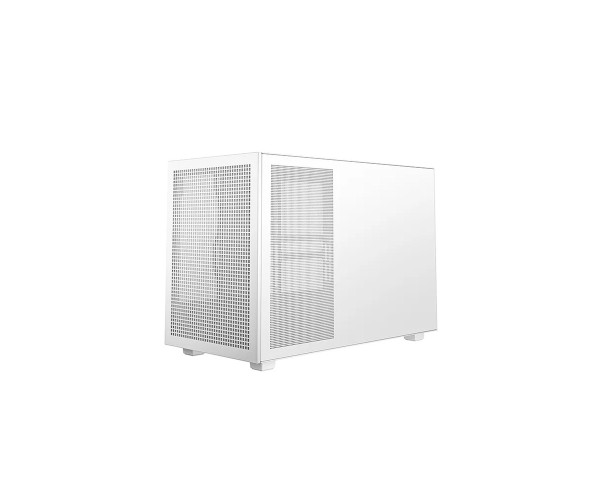

Both the front and top are perforated steel mesh, which means air has a short, unobstructed path through the case. Because DeepCool leaves fans out of the box, you are not paying for low-quality stock fans you would replace anyway. Here is how we suggest planning it:
- Front intake (up to 2 × 120mm): Feeds fresh air directly to the GPU. Skip these only if you need the extra 25mm for a very long graphics card.
- Top exhaust (up to 3 × 120mm or 2 × 140mm): The natural place for warm air to leave, or for a 240–360mm AIO radiator.
- Rear exhaust (1 × 120mm): Completes the front-to-back flow and keeps the CPU area cool.
The mesh panels can also be customised with DeepCool's PIXEL rubber inserts, a small touch that lets you add a personal pattern to the front and top without blocking airflow.
Three Ready-to-Use Build Ideas
1. The Quiet Desk Workstation
Micro-ATX board, 6- or 8-core processor, a 120mm tower air cooler, mid-range GPU, two front intake fans and one rear exhaust. Low noise, clean look, ideal for office work, coding and light editing.
2. The Compact 1440p Gaming Rig
Rear-connector Micro-ATX board, a 240mm or 280mm AIO on top, a triple-fan graphics card and a 750–850W ATX PSU. The glass side panel shows off a cable-free interior, while the wood-grain front keeps it from looking like a typical RGB box.
3. The No-Compromise Small Powerhouse
360mm top-mounted AIO, a flagship GPU up to 413mm with front fans removed, and a high-wattage ATX power supply. This is where the CH260 WOOD proves its "small outside, full-size inside" design.
Design and Build Quality: What You Notice in Person

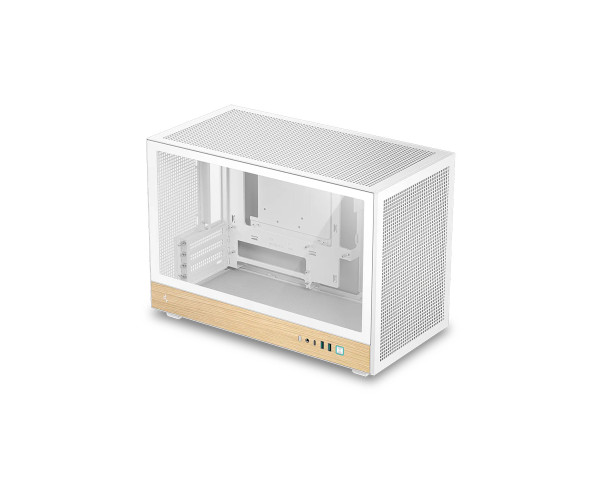

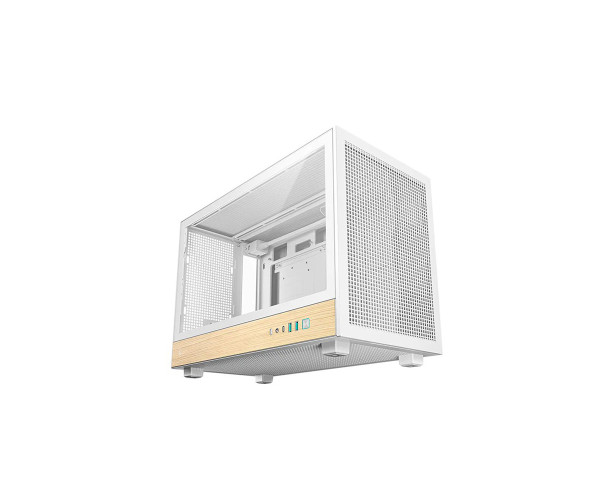

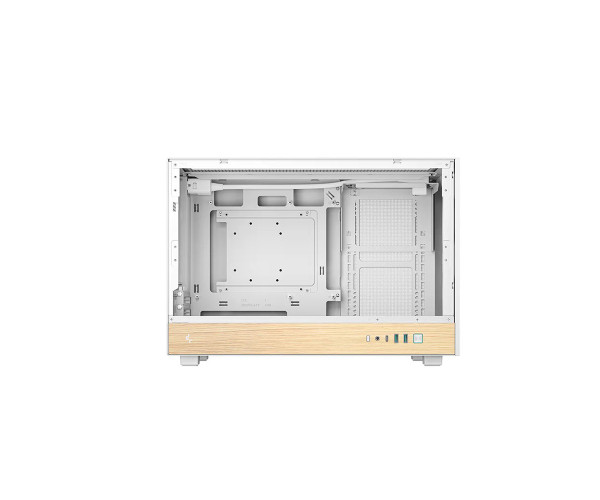

A white SPCC steel body, a full tempered glass side panel and a wood-grain I/O accent give it a furniture-like presence.
The wood-grain strip is the detail people comment on first. Against the white body it reads warm rather than flashy, so the PC sits comfortably next to a bookshelf or a wooden desk. Measuring about 438 × 225 × 312.5mm, it takes up noticeably less desk space than a standard mid-tower. The front I/O covers modern needs with two USB 3.0 ports, a USB Type-C port and an audio/mic jack, so fast flash drives and phones connect without reaching behind the PC.
Honest Trade-Offs Before You Buy
- No fans included: Budget for at least two or three fans or an AIO cooler.
- No front radiator support: Liquid cooling goes on the top or rear only.
- Limited drive bays: One 3.5-inch and one 2.5-inch bay suits M.2-first builds better than large HDD collections.
- Micro-ATX ceiling: Full ATX motherboards will not fit.
CH260 WOOD vs a Larger mATX Option
Choose the CH260 WOOD for natural styling and a smaller footprint; choose a larger digital-display case if you want built-in temperature readouts.
If you like the airflow idea but want live CPU temperature on the front panel, the DeepCool CH360 Digital BK mATX Airflow Case is the step-up alternative with a black finish and a digital status display. For a quieter, home-friendly white-and-wood look, the CH260 WOOD WH remains the more distinctive choice. You can compare more options in our DeepCool computer case collection or browse every PC casing available at CSI.
Purchase Now this DeepCool CH260 WOOD from CSI?
CSI is the top IT products distributor in Bangladesh, supplying authentic DeepCool hardware with official warranty, after-sales support and secure nationwide delivery.
- Original stock: Every unit comes through CSI's official supply channel, sealed and factory-fresh.
- Official warranty and service: Warranty claims and technical help are handled directly by the CSI support team.
- Build guidance: Our team can help you check GPU length, cooler height and PSU compatibility before you order.
- Safe delivery: Securely packed and shipped across Dhaka and all districts of Bangladesh.
- Full DeepCool ecosystem: Fans, CPU coolers, liquid coolers and power supplies are all available from the same DeepCool brand store at CSI.
Frequently Asked Questions
What is the DeepCool CH260 WOOD compact case?
It is a high-airflow Micro-ATX PC case from DeepCool with full steel mesh front and top panels, a tempered glass side panel and a wood-grain I/O accent. The WH model is the white version.
Does the DeepCool CH260 WOOD come with fans?
No. The case has no pre-installed fans, so you can choose your own fans or an AIO cooler. It supports up to six 120mm fans in total across the front, top and rear.
What is the maximum GPU length for the CH260 WOOD?
Graphics cards up to 388mm fit with front fans installed. Without front fans, the limit increases to 413mm.
Can I install a 360mm AIO liquid cooler in the CH260 WOOD?
Yes. The top panel supports 120, 140, 240, 280 and 360mm radiators. The rear supports a 120mm radiator, while the front and bottom do not support radiators.
Does the CH260 WOOD support a normal ATX power supply?
Yes. It takes a standard ATX (PS2) power supply up to 150mm long, mounted on a removable bracket for easier installation.
Is the DeepCool CH260 WOOD compatible with back-connector motherboards?
Yes. It supports Micro-ATX rear-connector motherboards and provides 29.6mm of clearance behind the motherboard tray for their cabling.
Which motherboard sizes does the CH260 WOOD support?
Mini-ITX and Micro-ATX, including rear-connector Micro-ATX boards. Full ATX motherboards are not supported.
What CPU cooler height fits in the CH260 WOOD?
Air coolers up to 174mm tall fit, which covers most large single-tower and many dual-tower heatsinks.
Where can I buy the DeepCool CH260 WOOD WH in Bangladesh?
You can order it from CSI the top IT products distributor in Bangladesh, with official warranty, after-sales support and secure delivery nationwide.
